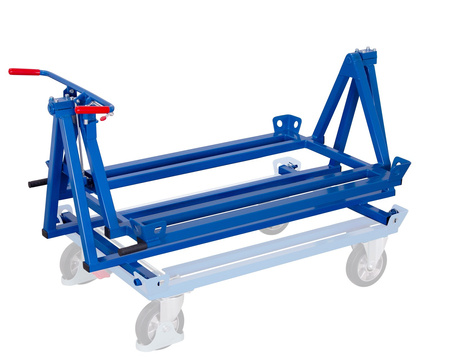

Self-tipping pallet trolley VARIOfit sw-810.014
Platform 1595×870 mm · Load capacity 400 kg · Ø160 mm wheels EasySTOP
Quick overview
| Load capacity | 400 kg |
| Platform dimensions | 1595×870 mm |
| Overall height | 700 mm |
| Unladen weight | 58.5 kg |
| Wheels | TPR Ø160 mm, non-marking |
| Brake | EasySTOP — central, foot-operated |
| Warranty | 12 years |
Key features
Non-marking — they do not damage epoxy floors or ceramic tiles
Central, foot-operated — locks both wheels with a single movement, no bending down
TÜV certified — safe handling of heavy loads
Beech-veneer MDF board — scratch-resistant, easy to maintain
Welded, powder-coated steel — high build quality
The longest in this class of trolley. TÜV certificate independently confirmed
Technical specification
| Parameter | Value |
|---|---|
| Item no. | sw-810.014 |
| Load capacity | 400 kg |
| Platform dimensions (W×D) | 1595×870 mm |
| Overall height | 700 mm |
| Unladen weight | 58.5 kg |
| Worktop | MDF board with beech veneer |
| Construction | Welded steel, powder coating |
| Wheels | TPR Ø160 mm, non-marking, ball bearings |
| Wheel configuration | 2 swivel with EasySTOP brake + 2 fixed |
| Certificate | TÜV |
| Warranty | 12 years |
| Country of origin | Poland |
Detailed information
- External dimensions: 1,595 x 870 x 700 mm (W/D/H)
- for load surface: 1,210 x 810 mm (W/D)
- Finish:
- stable construction made of steel angle sections
- with 4 stacking corners (lifting lugs)
- tilts at an angle of 18°
- locks in 3 basic positions
- (the lock is released by pressing the handle; the required position is reached
- by tilting the handle, lifting the handle locks the platform)
- additional handles with grips to make tilting easier
- handle with red plastic coating at both ends
- Centre of gravity of loaded goods: 450 mm
- Colour: RAL 5010 Gentian blue, powder-coated
- Load capacity depends on the floor used
- EAN: 4035694071100
Who is this trolley for?
- Transporting heavy loads in warehouses and production halls
- Moving crates, cartons and containers — e-commerce, logistics
- Servicing workstations in workshops and car service centres
- Companies looking for a trolley with a long warranty and a safety certificate
Frequently asked questions
What is the load capacity of the sw-810.014 trolley?
400 kg, confirmed by TÜV certificate.
Do TPR wheels damage epoxy floors?
No — TPR wheels are non-marking and leave no marks on any floor.
Can I order just 1 unit?
Yes, there is no minimum order quantity. Dispatch within 24–48 h. VAT invoice.
How does the EasySTOP brake work?
The central foot brake locks both front wheels at the same time — a single foot movement is all it takes.
