Lighting bar OŚW-70 PK (version with potentiometer)

The OŚW-70 PK lighting bar in the potentiometer version has been designed for workstations that require individual adjustment of the lighting level. The bar is designed for mounting on tool panels, which makes it universally applicable in an industrial environment.

Lighting bar OŚW-70 PK (version with potentiometer)

The OŚW-70 PK lighting bar in the potentiometer version has been designed for workstations that require individual adjustment of the lighting level. The bar is designed for mounting on tool panels, which makes it universally applicable in an industrial environment.

Product features:

• light brightness adjustable with a built-in potentiometer

• high luminous flux, suited to industrial applications

• energy-saving LEDs with high luminous efficacy

• available in DALI or 0–10 V version for integration with lighting automation

• construction without glass elements – increased resistance to mechanical damage

• high colour rendering index Ra > 80 – faithful colour reproduction

• LED modules protected against electrostatic discharge (ESD)

• constant luminous flux – no stroboscopic effect

• manufacturer's warranty – 5 years

• ingress protection rating IP44

• LED lifetime: L70 > 115,000 h (ta = 25°C)

• colour temperature: 4000 K

• high power supply efficiency > 88%

• power factor cos φ > 0.98

• supply voltage range: 198 – 264 VAC

• operating temperature range: from -20°C to +45°C

Construction:

• mounting bracket made of 1.5 mm steel sheet

• 1 mm sheet-metal reflector, reducing glare and directing the light comfortably for the user

• design allowing quick and permanent mounting on a tool panel

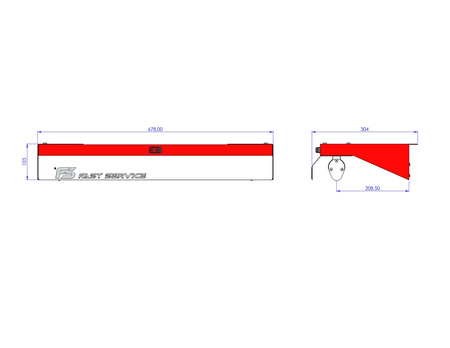

Dimensions and weight:

• length (L): 678 mm

• height (H): 103 mm

• total width with bracket: 304 mm

• bracket depth: 208.5 mm
