Lighting bar OŚW-70 MK (version with motion sensor)

The OŚW-70 MK lighting bar is equipped with a motion sensor, which allows automatic control of the lighting depending on the presence of the user. The bar is designed for mounting on tool panels, which makes it an ideal solution for industrial applications.

Lighting bar OŚW-70 MK (version with motion sensor)

The OŚW-70 MK lighting bar is equipped with a motion sensor, which allows automatic control of the lighting depending on the presence of the user. The bar is designed for mounting on tool panels, which makes it an ideal solution for industrial applications.

Product features:

• equipped with a motion sensor

• remote control for the lighting can be purchased separately (price on request)

• high luminous flux, suited to industrial applications

• energy-saving LEDs with high luminous efficacy

• available in DALI or 0–10 V version for integration with lighting automation

• construction without glass elements – increased resistance to mechanical damage

• high colour rendering index Ra > 80 – faithful colour reproduction

• LED modules protected against electrostatic discharge (ESD)

• constant luminous flux – no stroboscopic effect

• manufacturer's warranty – 5 years

• ingress protection rating IP44

• LED lifetime: L70 > 115,000 h (ta = 25°C)

• colour temperature: 4000 K

• high power supply efficiency > 88%

• power factor cos φ > 0.98

• supply voltage range: 198 – 264 VAC

• operating temperature range: from -20°C to +45°C

Construction:

• mounting bracket made of 1.5 mm steel sheet

• 1 mm sheet-metal reflector, reducing glare and directing the light comfortably for the user

• design allowing quick and permanent mounting on a tool panel

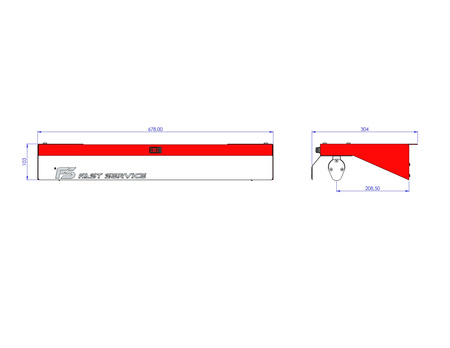

Dimensions and weight:

• length (L): 678 mm

• height (H): 103 mm

• total width with bracket: 304 mm

• bracket depth: 208.5 mm
