Lighting bar OŚW-210 PS version with potentiometer

Lighting bar OŚW-210 PS (version with potentiometer)

The OŚW-210 PS lighting bar is equipped with a potentiometer allowing smooth adjustment of the light brightness, which lets you adapt the lighting conditions to the individual needs of the user. Designed for mounting on tool panels, it performs excellently in industrial applications.

Lighting bar OŚW-210 PS (version with potentiometer)

The OŚW-210 PS lighting bar is equipped with a potentiometer allowing smooth adjustment of the light brightness, which lets you adapt the lighting conditions to the individual needs of the user. Designed for mounting on tool panels, it performs excellently in industrial applications.

Product features:

• light brightness adjustable with a built-in potentiometer

• high luminous flux, suited to industrial applications

• energy-saving LEDs with high luminous efficacy

• available in DALI or 0–10 V version for integration with lighting automation

• construction without glass elements – increased resistance to mechanical damage

• high colour rendering index Ra > 80 – faithful colour reproduction

• LED modules protected against electrostatic discharge (ESD)

• constant luminous flux – no stroboscopic effect

• manufacturer's warranty – 5 years

• ingress protection rating IP44

• LED lifetime: L70 > 115,000 h (ta = 25°C)

• colour temperature: 4000 K

• high power supply efficiency > 88%

• power factor cos φ > 0.98

• supply voltage range: 198 – 264 VAC

• operating temperature range: from -20°C to +45°C

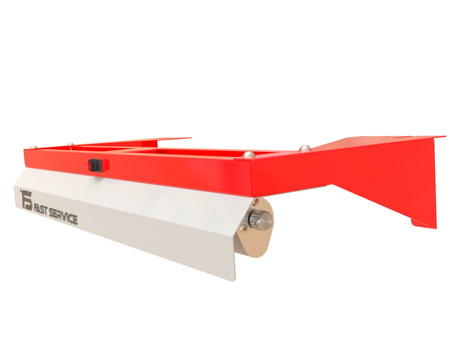

Construction:

• mounting bracket made of 1.5 mm steel sheet

• 1 mm sheet-metal reflector, reducing glare and directing the light comfortably for the user

• design allowing quick and permanent mounting on a tool panel

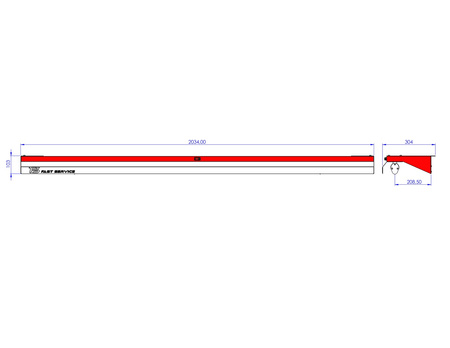

Dimensions and weight:

• length (L): 2034 mm

• height (H): 103 mm

• total width with bracket: 304 mm

• bracket depth: 208.5 mm
