Lighting bar OŚW-140 NS1

Lighting bar OŚW-140 NS1

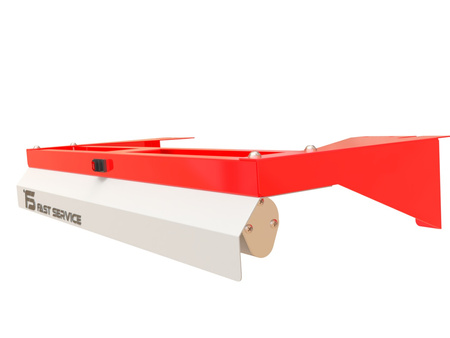

The OŚW-140 NS1 lighting bar has been designed for mounting on tool panels, providing optimal lighting of workstations in industrial conditions.

Lighting bar OŚW-140 NS1

The OŚW-140 NS1 lighting bar has been designed for mounting on tool panels, providing optimal lighting of workstations in industrial conditions.

Product features:

• high luminous flux, suited to industrial applications

• energy-saving LEDs with high luminous efficacy

• available in DALI or 0–10 V version for integration with lighting automation

• construction without glass elements – increased resistance to mechanical damage

• high colour rendering index Ra > 80 – faithful colour reproduction

• LED modules protected against electrostatic discharge (ESD)

• constant luminous flux – no stroboscopic effect

• manufacturer's warranty – 5 years

• ingress protection rating IP44

• LED lifetime: L70 > 115,000 h (ta = 25°C)

• colour temperature: 4000 K

• high power supply efficiency > 88%

• power factor cos φ > 0.98

• supply voltage range: 198 – 264 VAC

• operating temperature range: from -20°C to +45°C

Construction:

• mounting bracket made of 1.5 mm steel sheet

• 1 mm sheet-metal reflector, reducing glare and directing the light comfortably for the user

• design allowing quick and permanent mounting on a tool panel

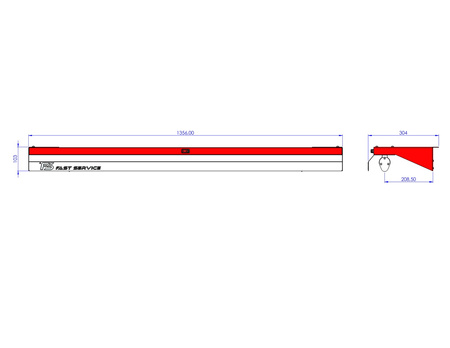

Dimensions and weight:

• length (L): 1356 mm

• height (H): 103 mm

• total width with bracket: 304 mm

• bracket depth: 208.5 mm
