Lighting bar OŚW-140 MS (version with motion sensor)

The OŚW-140 MS lighting bar is equipped with a motion sensor, which allows the lighting to switch on and off automatically depending on the presence of the user. Thanks to its design for mounting on tool panels, it performs excellently in industrial environments.

Lighting bar OŚW-140 MS (version with motion sensor)

The OŚW-140 MS lighting bar is equipped with a motion sensor, which allows the lighting to switch on and off automatically depending on the presence of the user. Thanks to its design for mounting on tool panels, it performs excellently in industrial environments.

Product features:

• equipped with a motion sensor

• remote control for the lighting can be purchased separately (price on request)

• high luminous flux, suited to industrial applications

• energy-saving LEDs with high luminous efficacy

• available in DALI or 0–10 V version for integration with lighting automation

• construction without glass elements – increased resistance to mechanical damage

• high colour rendering index Ra > 80 – faithful colour reproduction

• LED modules protected against electrostatic discharge (ESD)

• constant luminous flux – no stroboscopic effect

• manufacturer's warranty – 5 years

• ingress protection rating IP44

• LED lifetime: L70 > 115,000 h (ta = 25°C)

• colour temperature: 4000 K

• high power supply efficiency > 88%

• power factor cos φ > 0.98

• supply voltage range: 198 – 264 VAC

• operating temperature range: from -20°C to +45°C

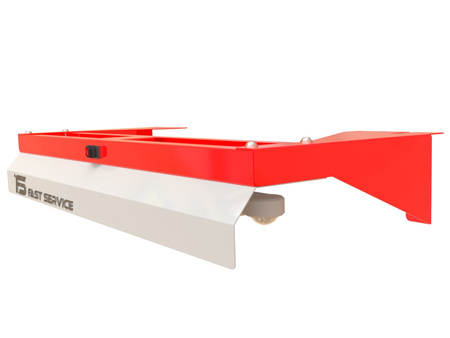

Construction:

• mounting bracket made of 1.5 mm steel sheet

• 1 mm sheet-metal reflector, reducing glare and directing the light comfortably for the user

• design allowing quick and permanent mounting on a tool panel

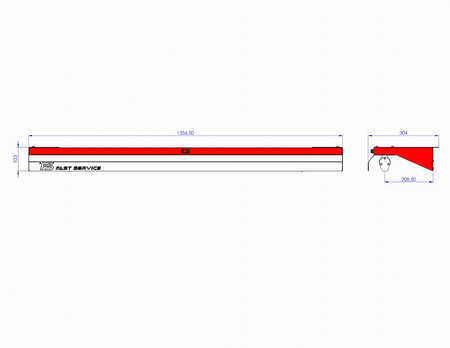

Dimensions and weight:

• length (L): 1356 mm

• height (H): 103 mm

• total width with bracket: 304 mm

• bracket depth: 208.5 mm
