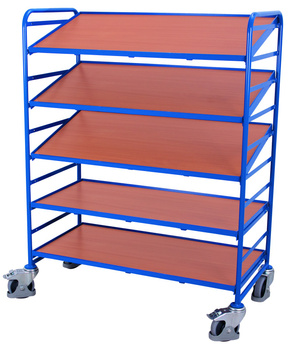

Euro crate trolley with 5 wood-effect board shelves, RAL 5010 VARIOfit sw-610.301
- Platform truck VARIOfit sw-610.301. Load capacity 250 kg. Platform 1350×665×1700 mm. TPR wheels Ø160 mm, EasySTOP central brake. 12-year warranty. TÜV certified.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Euro crate trolley with 5 wood-effect board shelves VARIOfit sw-610.301
Platform 1350×665 mm · Load capacity 250 kg · Ø160 mm wheels EasySTOP
Quick overview
| Load capacity | 250 kg |
| Platform dimensions | 1350×665 mm |
| Overall height | 1700 mm |
| Unladen weight | 103.0 kg |
| Wheels | TPR Ø160 mm, non-marking |
| Brake | EasySTOP — central, foot-operated |
| Warranty | 12 years |
Key features
Non-marking — they do not damage epoxy floors or ceramic tiles
Central, foot-operated — locks both wheels with a single movement, no bending down
TÜV certified — safe handling of heavy loads
Beech-veneer MDF board — scratch-resistant, easy to maintain
Welded, powder-coated steel — high build quality
The longest in this class of trolley. TÜV certificate independently confirmed
Technical specification
| Parameter | Value |
|---|---|
| Item no. | sw-610.301 |
| Load capacity | 250 kg |
| Platform dimensions (W×D) | 1350×665 mm |
| Overall height | 1700 mm |
| Unladen weight | 103.0 kg |
| Worktop | MDF board with beech veneer |
| Construction | Welded steel, powder coating |
| Wheels | TPR Ø160 mm, non-marking, ball bearings |
| Wheel configuration | 2 swivel with EasySTOP brake + 2 fixed |
| Certificate | TÜV |
| Warranty | 12 years |
| Country of origin | Poland |
Detailed information
- External dimensions: 1,350 x 665 x 1,700 mm (H/W/D)
- Load surface: 1,240 x 610 mm (W/D)
- Clearance between side crossbars: 125 mm
- Hole spacing for shelf mounting: 150 mm
- Finish:
- welded from steel tubes
- 5 shelves tiltable at an angle of 17° or 32°
- floor and shelves mounted on an angle-section frame with a 15 mm edge
- floor and shelves made of MDF board, beech-effect veneer
- load capacity of each shelf: 50 kg
- Colour: RAL 5010 Gentian blue, powder-coated
- Wheels:
- Wheels made of grey thermoplastic rubber, plastic rim, precision ball bearing, non-marking, Ø 160 mm, 2 swivel castors and 2 with brake, all with foot guard
- Load capacity: 250 kg
- EAN: 4035694008007
Who is this trolley for?
- Transporting heavy loads in warehouses and production halls
- Moving crates, cartons and containers — e-commerce, logistics
- Servicing workstations in workshops and car service centres
- Companies looking for a trolley with a long warranty and a safety certificate
Frequently asked questions
What is the load capacity of trolley sw-610.301?
250 kg, confirmed by TÜV certificate.
Do TPR wheels damage epoxy floors?
No — TPR wheels are non-marking and leave no marks on any floor.
Can I order just 1 unit?
Yes, there is no minimum order quantity. Dispatch within 24–48 h. VAT invoice.
How does the EasySTOP brake work?
The central foot brake locks both front wheels at the same time — a single foot movement is all it takes.
