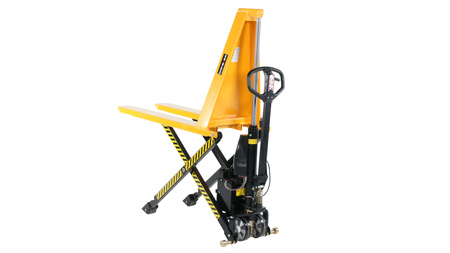

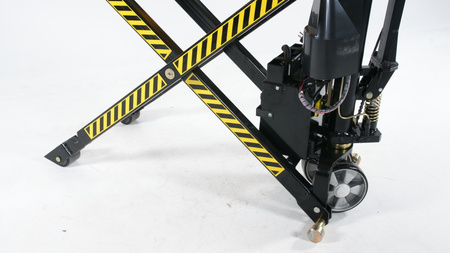

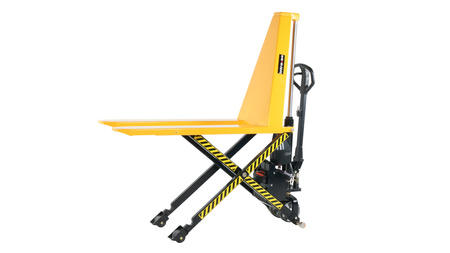

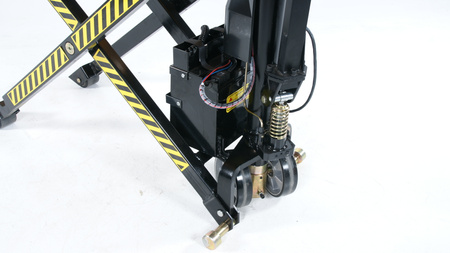

Electric scissor pallet truck 1500 kg, forks 540×1170 mm, polyurethane wheels – PL 1500
Electric scissor pallet truck 1500 kg, forks 540×1170 mm, polyurethane wheels – PL 1500
- The compact design with a battery and a pump unit positioned between the chassis and cylinder provides superior manoeuvrability and accessibility. Often used as an ergonomic aid for guarding the back, neck and shoulders.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Electric scissor pallet truck 1500 kg, forks 540×1170 mm, polyurethane wheels – PL 1500
Free delivery in Poland · lead time up to 10 days
Key features
- Piston type: single piston
- Lift time to max. height: 11 seconds without load, 19 seconds with 160 kg load
Description
The compact design with a battery and a pump unit positioned between the chassis and cylinder provides superior manoeuvrability and accessibility. Often used as an ergonomic aid for guarding the back, neck and shoulders. Possible to both pump and lower manually if the battery is run-down. Lift time to maximum height without load: 11 seconds, with load (160 kg): 19 seconds.
Technical data
| Electronics / Motor | Battery: 12 V/60 Ah, Charger: internal, 8 A/12 V, Operating voltage: 220 V, Lift motor: 0,8 kW |
| Capacity (kg) | 1500 |
| Length / Depth (mm) | 1660 |
| Width (mm) | 540 |
| Height (min.) (mm) | 1285 |
| Height (mm) | 1667 |
| Fork length (mm) | 1170 |
| Fork width (mm) | 160 |
| Fork height / thickness (mm) | 50 |
| Inner / other dimensions LxWxH (mm) | Lift height: min. 85 mm, max. 800 mm |
| Weight (kg) | 170 |
| Colour | Yellow (RAL 1028) / Black |
| Material | Steel / Polyurethane wheels |
| Wheel data (standard / steering wheels) | Material: polyurethane, Dimensions: 180 mm diameter, 50 mm width |
| Wheel data (fork wheels) | Material: polyurethane, Configuration: single, Dimensions: 75 mm diameter, 50 mm width |
| Manufacturer code | 1832043013 |
| EAN | 7332687086408 |
Video
Documents for download
Delivery and lead time
- Free delivery within Poland; delivery to other countries according to the shop’s shipping rates.
- Lead time: up to 10 working days.
- VAT invoice; payment in advance or by bank transfer for companies and institutions.
- Manufacturer’s warranty.
