MIDI-3 Workshop Set

A functional, versatile workstation designed for professional service centres, technical workshops and users who need a well-organised work area. The set combines compact dimensions with plenty of storage space and a comfortable work zone.

The set includes:

• Workshop cabinet T-20 – 6 drawers on full-extension ball-bearing runners

• Workshop drawer unit T-30 – 3 drawers and a compartment with a hinged door

• Tool panel NT140-02 – perforated, compatible with system tool hooks

• Workshop cabinet M-3-02-01 – with hinged doors and adjustable shelves

• Impregnated plywood worktop 40 mm – MINI, dimensions 1356 × 545 × 40 mm

• LED lighting 1030 NS1

Technical specifications of the products:

Detailed technical information on each component of the set is available in by clicking the product name.

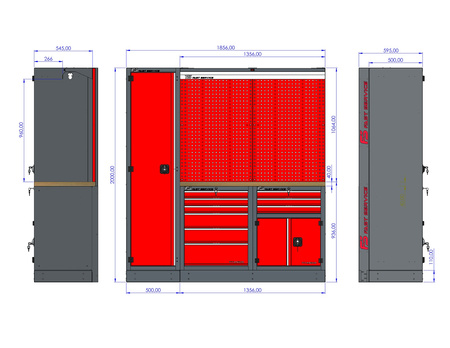

Technical drawings and visualisations can be found in photo gallery of the individual modules.

Main features of the set:

• Durable powder-coated steel construction

• Full-extension drawers with non-slip mats

• Functional combination of two lower cabinets – one with drawers only, the other mixed

• Tool panel providing convenient organisation of hand tools

• Spacious free-standing cabinet with adjustable shelves

• 40 mm worktop – stable and resistant to loads

• Effective LED lighting above the work area

• The compact width makes it easy to fit the set into the available space

LED lighting options:

The workstation is fitted with energy-efficient, high-performance LED lighting 1030 with a power of 54 W, mounted above the work area. The user can choose one of three available variants:

1. Basic version – standard on/off switching

2. With potentiometer – smooth adjustment of the light intensity

3. With motion sensor – switches on automatically when presence is detected

This allows the lighting to be matched precisely to the type of work and your own preferences.

Choice of work worktop:

The MIDI-3 set can be fitted with one of the following worktops:

1. Plywood worktop 40 mm thick

2. Plywood worktop 40 mm covered with 2 mm petrol- and oil-resistant rubber + angle trim

3. Plywood worktop 40 mm covered with 2 mm general-purpose rubber mat + angle trims

4. Plywood worktop 40 mm covered with 1.0 mm galvanised steel sheet

5. Plywood worktop 40 mm covered with 1.5 mm galvanised steel sheet

6. Plywood worktop 40 mm lined with AISI 304 stainless steel sheet 1.0 mm

7. Plywood worktop 40 mm lined with AISI 304 stainless steel sheet 1.5 mm

8. Oak block worktop 40 mm

9. Plywood worktop 40 mm lined with 1 mm polyurethane mat + angle trims

10. Plywood worktop 40 mm covered with a 2 mm polyurethane layer

Choice of plinth:

• Standard plinth – a stable, rigid base

• Plinth with height adjustment – allows perfect levelling of the workstation

Choice of colour:

Metal parts are powder-coated. If your preferred colour is not available in the configurator, the set can be painted in any colour from the RAL palette after prior contact.

Applications:

The MIDI-3 set works well in professional workshops, technical service centres and places that require excellent tool organisation and a stable, well-lit work surface.
