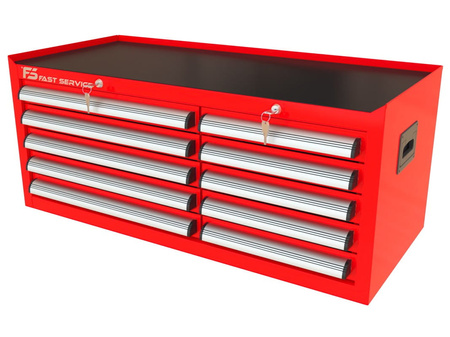

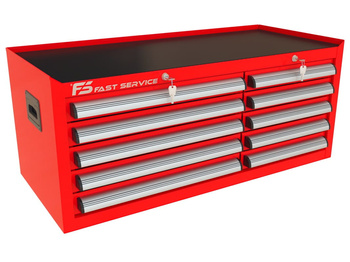

TRUCK trolley top unit with 10 drawers PNT-150-50

Dimensions:

• width: 1076.5 mm
• depth: 473 mm
• height: 458 mm

Workshop top unit with 10 drawers PNT-150-50

– 10 drawers on steel telescopic ball-bearing runners with full extension

– drawer extension 97 %

– static load capacity of up to 60 kg per drawer

– central lock that locks all drawers when the key is turned

– central locking with two keys supplied, Master Key system

– the base of each drawer is lined with a general-purpose 2.0 mm damping rubber mat

– top unit worktop lined with a vibration-damping rubber mat, petrol- and oil-resistant, 2.0 mm thick

– screw-on anodised, satin-finish aluminium drawer handle with a plastic insert protecting the side edges

– top unit frame made of steel sheet 1 mm thick

– product fitted with sturdy folding side handles to help with carrying

– can be painted in any colour of the basic RAL palette (included in the price)

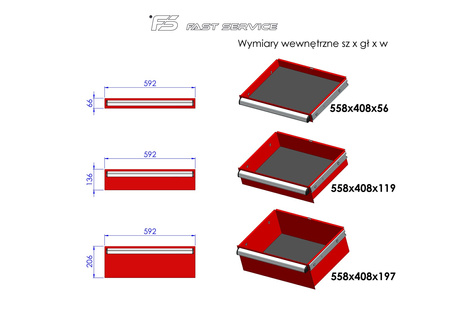

Usable drawer dimensions:

5 x low drawer 70, standard
– drawer front height 66 mm
– usable internal height 56 mm
– usable internal width 558 mm
– usable internal depth 408 mm

5 x low drawer 70, narrow
– drawer front height 66 mm
– usable internal height 56 mm
– usable internal width 368 mm
– usable internal depth 408 mm

– exact dimensions in the photo gallery

Optional equipment (at extra cost):

– lock preventing more than one drawer from being opened at a time

– trolley worktop made of plywood 40 mm thick

– adjustable dividers / partitions for storing small parts

– Master Key central locking gives access to any number of cabinets with a group key while retaining individual keys

– painting in a colour other than the basic RAL palette
