Special offer Bargain

Tool panel N223-03-E

- panel legs made of high-quality steel sheet 1.5 mm thick

7 549,49 zł

incl. VAT / 1pc.

Lowest price in 30 days before discount: ~~8 296,14 zł~~ / pc.-9%

Regular price: ~~8 296,14 zł~~ / pc.-9%

You can buy for pts.

Notify about availability

Contact the shop staff, in order to estimate time of preparing this product for shipment.

Shipment

Free and fast delivery from 4 000,00 zł

14 days for easy returns

Find out in which store you can check the product and buy it right away

Tool panel N223-03-E

one size

Safe shopping

Deferred Payments. Buy now, pay later, if you don't return it

Buy now, pay later - 4 steps

When choosing a payment method, select PayPo. PayPo - buy now, pay later

PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.

After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.

Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.

After purchase you will receive pts.

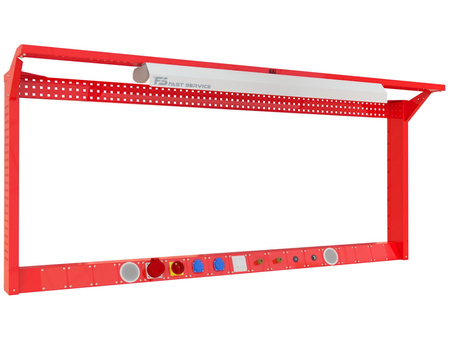

Tool Panel N223 — three-segment, 2230 mm

Perforated steel panel with LED lighting and electrical module

Tool panel N223-03-E is a three-segment perforated panel, 2230 mm wide, with an electrical module. The steel construction with 32 mm perforation allows the entire system to be mounted ZW tool hooks and holders for organising tools. The built-in LED lighting gives excellent visibility of tools in the workshop. Can be mounted on a table worktop or directly on a wall.

Features and benefits

🔩

LEG SHEET 1.5 mm

Solid steel construction of the panel legs and frame, made of 1.5 mm thick sheet

🧲

PERFORATION 10×10 mm

Holes every 32 mm — compatible with the entire ZW hook system

💡

LED LIGHTING

Integrated 5000 lm LED luminaire, IP40, with switch in the top beam

🏭

PANEL SHEET 1.0 mm

Perforated panels with reinforcements, made of high-quality steel

📐

WIDTH 2230 mm

Panel 223 cm wide, 3 height segments

🔧

TABLE/WALL MOUNTING

Brackets for mounting on a worktop or directly on a wall

Specification

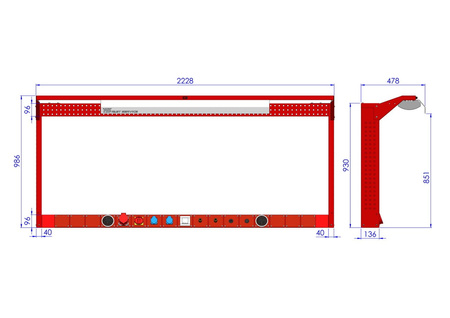

Technical specification
Panel width	2230 mm
Number of segments	3
Leg / frame sheet	1.5 mm — steel
Perforated panel sheet	1.0 mm — steel
Perforation	10×10 mm mesh, 32 mm pitch
Lighting	LED 5000 LM, IP40, 840 (41 W), reflector
Mounting	on a workbench worktop or wall
Variant	Variant E — panel + electrical module with sockets
Manufacturer	Becker — Poland

Variants in the N223 series

The N223 panel is available in several variants:

N223-0x — panel only (1–4 segments), no accessories
N223-0x-01 — panel + ZW hook set (variant 1)
N223-0x-02 — panel + extended hook set (variant 2)
N223-0x-E — panel + electrical module with sockets
Electrical module N223-E — power module available separately

Frequently asked questions

Is the panel compatible with ZW hooks?

Yes — the N223 panel has 10×10 mm perforation with 32 mm pitch, which is the ZW system standard. It is compatible with ZW-01 to ZW-12 and ZWN hooks, bins and rails. You can find the whole range in the ZW tool hooks and holders.

How do I mount the panel?

The N223 panel mounts to the workbench worktop using dedicated brackets (included in the set) or directly to the wall. LED lighting with a switch is built into the top beam of the panel.

What is the difference between variants -01, -02 and -E?

The basic version (N223-0x) is the panel with lighting only. Versions -01 and -02 additionally include sets of tool hooks and ZW holders. Version -E has an electrical module with sockets instead of the tool hook set. The N223-E electrical module can also be purchased separately.

Which table suits the panel?

The 2230 mm panel is ideal for tables 2230–2240 mm wide. It fits PROFESSIONAL P-3 and TITANIUM line tables. Also check the available tool stands for workshop organisation.

Available in this series: ZW tool hooks and holders | tool display cabinets

CentrumWarsztatowe.pl — Tool Panel N223

Manufacturer: Becker | Lead time 15–25 working days | 24-month warranty
