Tool panel N192-04
Special offer
Tool panel N192-04
- - panel made of high-quality steel sheet 1.0 mm thick
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

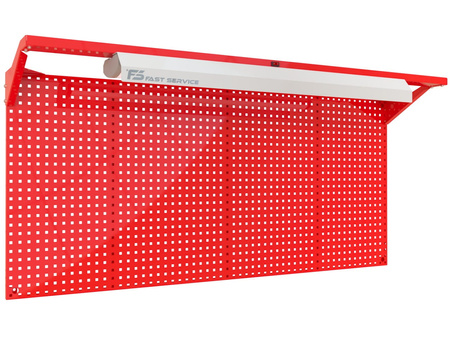

Tool Panel N192 — four-segment, 1920 mm
Perforated steel panel with LED lighting
Tool panel N192-04 is a four-segment perforated panel 1920 mm wide. The steel construction with 32 mm perforation allows you to mount the complete system of ZW tool hooks and holders for organising tools. The built-in LED lighting gives excellent visibility of tools in the workshop. Can be mounted on a table worktop or directly on a wall.
Features and benefits
🔩
LEG SHEET 1.5 mm
Solid steel construction of the panel legs and frame, made of 1.5 mm thick sheet
🧲
PERFORATION 10×10 mm
Holes every 32 mm — compatible with the entire ZW hook system
💡
LED LIGHTING
Integrated 5000 lm LED luminaire, IP40, with switch in the top beam
🏭
PANEL SHEET 1.0 mm
Perforated panels with reinforcements, made of high-quality steel
📐
WIDTH 1920 mm
Panel 192 cm wide, 4 segments high
🔧
TABLE/WALL MOUNTING
Brackets for mounting on a worktop or directly on a wall
Specification
| Technical specification | |
|---|---|
| Panel width | 1920 mm |
| Number of segments | 4 |
| Leg / frame sheet | 1.5 mm — steel |
| Perforated panel sheet | 1.0 mm — steel |
| Perforation | 10×10 mm mesh, 32 mm pitch |
| Lighting | LED 5000 LM, IP40, 840 (41 W), reflector |
| Mounting | on a workbench worktop or wall |
| Variant | No accessories — panel with lighting only |
| Manufacturer | Becker — Poland |
Variants in the N192 series
The N192 panel is available in several variants:
- N192-0x — panel only (1–4 segments), no accessories
- N192-0x-01 — panel + ZW hook set (variant 1)
- N192-0x-02 — panel + extended hook set (variant 2)
- N192-0x-E — panel + electrical module with sockets
- Electrical module N192-E — power module available separately
Frequently asked questions
Is the panel compatible with ZW hooks?
Yes — the N192 panel has 10×10 mm perforation with 32 mm pitch, which is the ZW system standard. It is compatible with ZW-01 to ZW-12 and ZWN hooks, bins and rails. You can find the whole range in the ZW tool hooks and holders.
How do I mount the panel?
The N192 panel is mounted to the worktop of a workbench using the dedicated brackets (included in the set) or directly to the wall. The LED lighting is built into the top beam of the panel, with a switch.
What is the difference between variants -01, -02 and -E?
The basic version (N192-0x) is the panel with lighting only. Versions -01 and -02 additionally include sets of ZW hooks and holders. Version -E has an electrical module with sockets instead of a hook set. The N192-E electrical module can also be bought separately.
Which table suits the panel?
The 1920 mm panel is ideal for tables 1920–1930 mm wide. It fits tables from the PROFESSIONAL P-3 and TITANIUM lines. See also the available tool stands for workshop organisation.
Available in this series: ZW tool hooks and holders | tool display cabinets
CentrumWarsztatowe.pl — Tool Panel N192
Manufacturer: Becker | Lead time 15–25 working days | 24-month warranty
