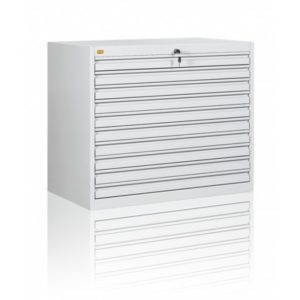

Plan and map cabinet, A-1 format, ten drawers
- Ten-drawer cabinet designed for storing maps, plans, technical documentation and printing montages up to a maximum A-1 format.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

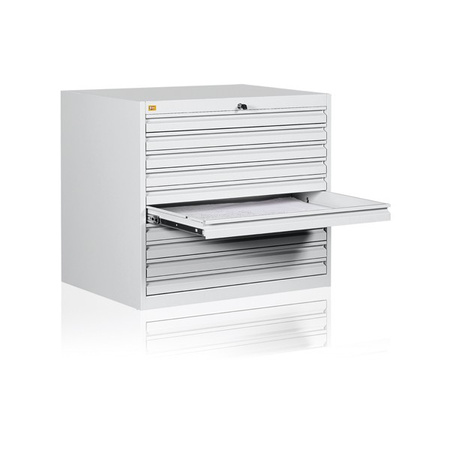

A1 plan and map cabinet, 10 drawers is a metal cabinet with ten drawers, designed for storing maps, plans and technical documentation up to a maximum format of A-1. The drawers run on telescopic runners with a safety stop preventing them from being pulled out, and the whole cabinet is closed with one central lock.
Cabinet A1/10 — technical data
| Number of drawers | 10 |
| Maximum document format | A-1 |
| Dimensions (H × W × D) | 866 × 980 × 680 mm |
| Cabinet weight | 135 kg |
| Runners | telescopic, with stop |
| Locking | one central lock |
| Material | steel sheet 0.6–2.0 mm |
| Finish | epoxy-polyester powder coating, RAL 7035 |
| Item no. (SKU) | A1/10 |
| EAN code | 5905133310307 |
| Warranty / lead time | 24 months / 3–7 weeks |
Why large-format documentation should not be rolled up
A plan stored in a roll remembers the curl. Once unrolled it curls back up by itself, has to be weighed down at the four corners, and every time it is unrolled the paper creases along the same lines.
Storing flat in a drawer eliminates this problem and takes up less space than tubes — one cabinet replaces dozens of rolls standing in a corner.
Who this cabinet is for
- Design and architectural offices — working drawings
- Surveying and cartography — maps and survey records
- Plant technical departments — machinery and installation documentation
Related products
You will find other capacities and formats in the category filing cabinets. For fitting out the part of the office closed with doors or a roller shutter, the following are a good choice: office cabinets, and the manufacturer's full range is collected in KART-MAP line.
Frequently asked questions about the A1/10 cabinet
What document format does the A1/10 cabinet hold?
The maximum format is A-1. Documents are stored flat, without being rolled up.
Most common questions about the N-BU/5 cabinet
What colours is the cabinet available in?
What is the lead time?
Standard is 3–7 weeks. From November to January the lead time may be longer due to the higher volume of orders.
