The modular workshop cabinet M-3-01-00 is one of the elements of
workshop equipment and is the first unit of a complete
universal set.
- cabinet width 1000 mm
- cabinet depth 500 mm
- cabinet height with plinth 2000 mm
- plinth height 110 mm
WORKSHOP CABINET M-3-01-00
The modular workshop cabinet M-3-01-00 is one of the elements of workshop equipment and is the first unit of a complete universal set.

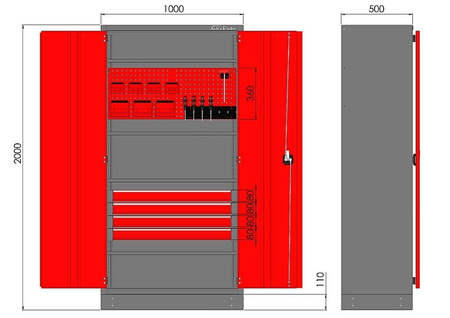

- cabinet width 1000 mm
- cabinet depth 500 mm
- cabinet height with plinth 2000 mm
- plinth height 110 mm
- cabinet made entirely of 1.0 mm steel sheet
- double doors hung on extremely strong external Elesa Ganter CFT series hinges
- the whole cabinet stands on a plinth 110 mm high, protected against corrosion,
with a zinc powder primer.
- the user assembles the plinth and bolts it to the cabinet themselves
- plinth made of 1.5 mm steel sheet
- cabinet fitted with a set of 4 shelves resting on brackets
- shelves adjustable in height every 30 mm using movable brackets
- static shelf load up to 90 kg
- the side brackets for the shelves also support the universal drawer mounting system.
( the drawer set is separate equipment for each cabinet and is not an integral part of it; the drawers shown in the photos are for illustration only ) - a drawer set consists of: a drawer of any height,
two side brackets hung
on micro hooks, a set of ball-bearing runners 400 mm long, and
a safety lock preventing the brackets from slipping off the hooks.
- the whole unit is designed for self-assembly
- drawer handles lined with a chrome-plated PVC cover
- to adapt the cabinet even better to the requirements of our customers, we have fitted
additional reinforcements with perforations on the rear wall, which allow a perforated panel to be hung at any
point along the entire height of the cabinet ( the set, a perforated panel with micro hooks and a safety lock
( panels are separate equipment for each cabinet and are not an integral part of it, the panels shown in the photos are for illustration only )
- tool hooks from our extensive range
- the cabinet doors are made with a fold forming a comfortable handle protected by a stainless steel cover
- the cabinet is closed with a bolt lock securing the cabinet doors at three points.
- cabinet weight without drawers and perforated panel 97.0 kg
| Width | 1000mm |
| Depth | 500mm |
| Overall height | 2000mm |
| Construction | High-quality steel sheet, 1mm thick |
| Static shelf load capacity | 90kg |
| Weight | 97kg |
| Paint finish | Powder coating |
| Available colours | Choose from the drop-down list next to the product photo |
| Handles | Lined with a chrome-plated PVC cover. |
| Protective mat | Available as an extra |
| Locking | Bolt lock securing the doors at 3 points. |
| Anti-corrosion protection | Yes. The plinth is protected with a zinc powder primer. |
| Standard equipment | 4 adjustable shelves inside. |
| Delivery method | Fully assembled. Ready to use. |
