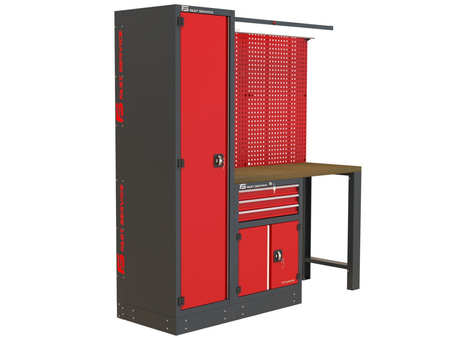

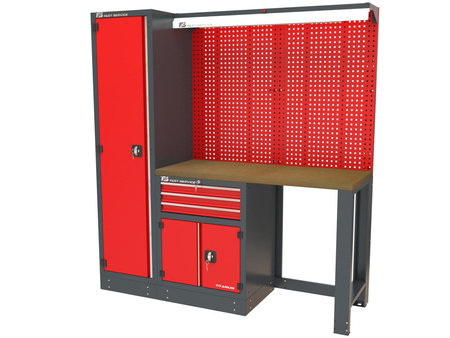

MINI-2 workshop set

MINI-2 Workshop Set

A compact and functional workstation designed for organising work in workshops, garages and service points. The set consists of sturdy modular elements – ensuring durability, ease of use and an optimal working area.

The set includes:

• Workshop drawer unit T-30 – with 3 drawers on ball-bearing runners and a lockable compartment with a door

• Tool panel NT140-02 – perforated, designed for system tool hooks

• Workshop cabinet M-3-02-01 – with hinged doors and adjustable shelves

• Impregnated plywood worktop 40 mm – MINI, dimensions 1356 × 545 × 40 mm

• LED lighting 1030 NS1

Technical specifications of the products:

Detailed technical information on the individual elements of the set is available by clicking the product name.

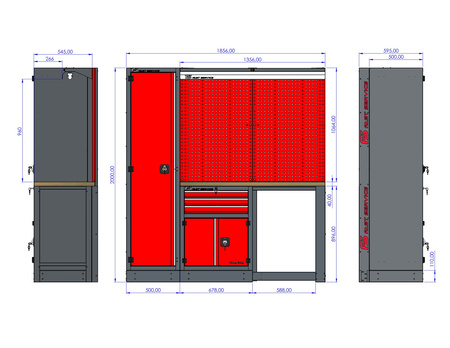

Technical drawings and visualisations can be found in photo gallery of each module.

Main features of the set:

• Durable powder-coated steel construction – resistant to corrosion and damage

• Drawers on ball-bearing runners with full extension and non-slip mats

• Perforated tool panel makes it easier to organise your most-used tools

• Spacious workshop cabinet with adjustable shelves

• Stable 40 mm thick worktop

• High-performance LED lighting illuminating the work zone

• Compact size – ideal for smaller work areas

LED lighting options:

The workstation is fitted with energy-efficient, high-performance LED lighting 1030 with a power of 54 W, mounted above the work area. The user can choose one of three available variants:

1. Basic version – standard on/off switching

2. With potentiometer – smooth adjustment of the light intensity

3. With motion sensor – the lamp switches on automatically when presence is detected

Choosing the variant lets you adapt the lighting conditions to the nature of the work and the user's individual preferences.

Choice of work worktop:

The MINI-2 set can be fitted with one of the following worktop variants:

1. Plywood worktop 40 mm thick

2. Plywood worktop 40 mm covered with 2 mm petrol- and oil-resistant rubber + angle trim

3. Plywood worktop 40 mm covered with 2 mm general-purpose rubber mat + angle trims

4. Plywood worktop 40 mm covered with 1.0 mm galvanised steel sheet

5. Plywood worktop 40 mm covered with 1.5 mm galvanised steel sheet

6. Plywood worktop 40 mm lined with AISI 304 stainless steel sheet 1.0 mm

7. Plywood worktop 40 mm lined with AISI 304 stainless steel sheet 1.5 mm

8. Oak block worktop 40 mm

9. Plywood worktop 40 mm lined with 1 mm polyurethane mat + angle trims

10. Plywood worktop 40 mm covered with a 2 mm polyurethane layer

Choice of plinth:

• Standard plinth – stable and rigid base of the set

• Plinth with height adjustment – allows perfect levelling of the workstation on uneven floors

Choice of colour:

Metal parts are powder-coated. If your chosen colour is not in the configurator, powder coating can be done in any colour from the RAL palette after prior contact.

Applications:

The MINI-2 set is an excellent solution for professional service centres, technical workshops and individual users looking for a compact, durable and functional workstation with high-performance LED lighting above the work area.
