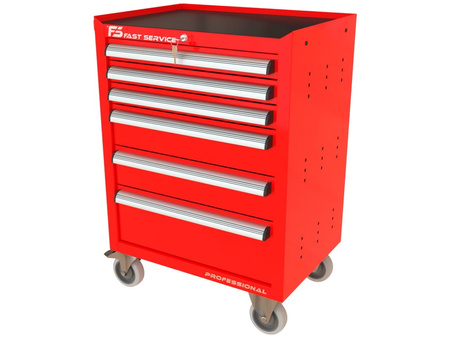

Heavy-duty OFF ROAD 4x4 tool trolley P-220-4x4
PROFESSIONAL OFF ROAD 4×4 trolley · 60 kg/drawer · RAL colour included
Quick overview
| Drawers | 6 drawers |
| Load capacity | 60 kg per drawer |
| Dimensions | 678 × 480 × 963.5 mm |
| Weight | 66 kg |
| Castors | Colson Performa 125 mm (1 with brake) |
| Warranty | 5 years (60 months) |
Key features
Double the load capacity of the TRUCK series — for heavy tools and measuring heads
One key locks all drawers — 2 keys supplied
Castors 125 mm: 2 fixed + 2 swivel, 1 with brake — quiet, non-marking rubber
Rubber mat in every drawer and on the worktop — protects tools from scratches
Sides designed for ZW tool hooks — tools always to hand without opening the drawers
Colour from the standard RAL palette chosen by the customer — included in the product price
Technical specification
| Parameter | Value |
|---|---|
| Item no. | P-220-4 |
| Number of drawers | 6 drawers |
| Drawer load capacity | 60 kg (static) |

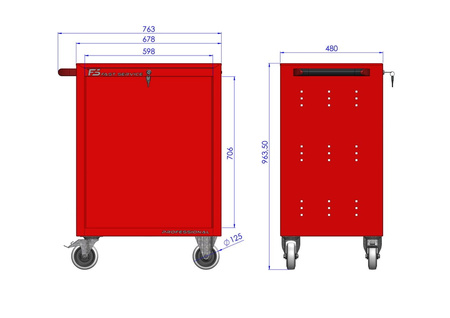

| Dimensions (W/D/H) | 678 × 480 × 963.5 mm |
| Trolley weight | 66 kg |
| Castors | 4× Colson Performa: 2 fixed + 2 swivel (1 with brake) |
| Locking | Master Key central locking — 2 keys supplied |
| Sheet | Steel 1.0 mm; base reinforcements 2.0 mm |
| Handle | Anodised satin aluminium — side edge protection |
| Rubber mats | Every drawer + worktop (petrol/oil-resistant 2.0 mm) |
| Side perforation | Yes — compatible with the ZW tool hook system |
| RAL colours | 50+ colours from the standard RAL palette — included in the product price |

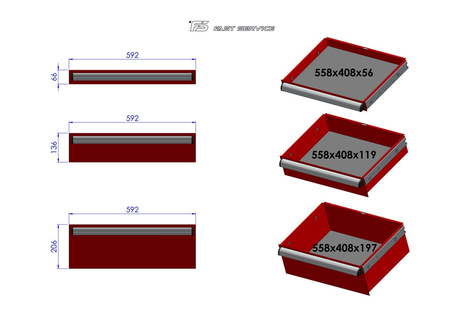

Drawer dimensions
| Drawer | Front height | Int. height | Int. width | Load capacity |
|---|---|---|---|---|
| 3× low 70 | 66 mm | 56 mm | 558 mm | 60 kg |
| 2× medium 140 | 136 mm | 119 mm | 558 mm | 60 kg |
| 1× high 210 | 206 mm | 197 mm | 558 mm | 60 kg |
Who is the P-220-4 for?
OFF ROAD castors cope with uneven surfaces — ideal for old floors and building sites.
Load capacity 60 kg/drawer, Master Key central locking. See workshop sets.
Reinforced large castors — mobility in tough conditions.
1.0 mm steel sheet and rubber mats. RAL colours included.
Frequently asked questions
- Trolley worktop — plywood, 40 mm thick, or steel
- Drawer interlock — prevents more than one drawer from opening at the same time
- Dividers / partitions — for storing small parts
- Master Key — access to many cabinets with a single group key
- Glides instead of castors — with level adjustment and an option to anchor to the floor
- ZW hooks — for organising tools on the side perforation
